# cesium-裁剪模型
使用和裁剪地面差不多的方式进行模型裁剪
# 完整代码
<!DOCTYPE html>
<html lang="en">
<head>
<!-- Use correct character set. -->
<meta charset="utf-8">
<!-- Tell IE to use the latest, best version. -->
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
<meta name="viewport"
content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
<title>Hello World!</title>
<script src="../Cesium-1.89/Build/Cesium/Cesium.js"></script>
<style>
@import url(../Cesium-1.89/Build/Cesium/Widgets/widgets.css);
html,
body,
#cesiumContainer {
width: 100%;
height: 100%;
margin: 0;
padding: 0;
overflow: hidden;
}
#eye {
position: absolute;
width: 20%;
height: 20%;
bottom: 0;
right: 0;
z-index: 999;
background: red;
border: solid blue 1px;
}
#show {
width: 100%;
height: 100%;
}
</style>
</head>
<body>
<div style="display: -webkit-flex;display: flex;width: 100%;height: 100%">
<div style="width: 90%;height: 100%">
<div id="cesiumContainer"></div>
</div>
<div style="width: 10%;height: 100%;background-color: #d3d3d3;padding: 30px">
<button onclick="cameraLookAtTransform()">模型定位</button>
<button onclick="clipModel()">裁剪模型</button>
</div>
</div>
<div id="slider"></div>
<video id="daolu" muted autoplay loop crossorigin controls>
<source src="../../static/data/daolu.mp4" type="video/mp4"/>
</video>
<script>
//Cesium token
let cesium_tk = "token";
Cesium.Ion.defaultAccessToken = cesium_tk;
// 添加mapbox自定义地图实例
let layer = new Cesium.MapboxStyleImageryProvider({
url: 'https://api.mapbox.com/styles/v1',
username: 'sungang',
styleId: 'styleId',
accessToken: 'accessToken',
scaleFactor: true
});
let viewer = new Cesium.Viewer('cesiumContainer', {
imageryProvider: layer,
geocoder: false,
homeButton: false,
sceneModePicker: false,
baseLayerPicker: false,
navigationHelpButton: false,
animation: false,
timeline: false,
fullscreenButton: false,
vrButton: false
});
viewer._cesiumWidget._creditContainer.style.display = "none";
let model = new Cesium.Cesium3DTileset({
url: '../res/data/3dtiles/tianjie/tileset.json',
modelMatrix: Cesium.Matrix4.fromArray(
[0.9972458032561666, 0.04372029028528979, 0.05991113506964879, 0,
-0.03623787897545647, 0.9920229449104262, -0.12073646051879428, 0,
-0.06471185374661931, 0.11823287609043515, 0.9908750491338749, 0,
-663.0794944260269, 1211.490494620055, 2974.1003134818748, 1]),
});
let tileset = viewer.scene.primitives.add(model);
//模型定位
function cameraLookAtTransform() {
var boundingSphere = model.boundingSphere
viewer.camera.viewBoundingSphere(boundingSphere, new Cesium.HeadingPitchRange(Cesium.Math.toRadians(120.0), Cesium.Math.toRadians(-10), boundingSphere.radius * 2.5))
viewer.camera.lookAtTransform(Cesium.Matrix4.IDENTITY)
}
function clipModel() {
let m_b3dm = model;
this.clippingPlanes = m_b3dm.clippingPlanes = loadClip();
let clippingPlanes = this.clippingPlanes;
let boundingSphere = m_b3dm.boundingSphere;
for (let i = 0; i < clippingPlanes.length; ++i) {
let plane = clippingPlanes.get(i);
let planeEntity = viewer.entities.add({ //添加平面实体 直观裁切面
id: '裁切面' + i,
position: boundingSphere.center,// offset, 根据3dtiles同步调整裁切面高度
plane: {
dimensions: new Cesium.Cartesian2(150, 150),//(radius * 2.5, radius * 2.5),
material: Cesium.Color.WHITE.withAlpha(0.0),
plane: new Cesium.CallbackProperty(createPlaneUpdateFunction(plane), false),//回调方法
outline: true,
outlineColor: Cesium.Color.WHITE
}
});
}
CreateSlider('slider', 200, 20, 300, 'slider');
}
function loadClip() {
this.clippingPlanes = new Cesium.ClippingPlaneCollection({
planes: [
new Cesium.ClippingPlane(new Cesium.Cartesian3(1.0, 0.0, 0), 0),
],
edgeColor: Cesium.Color.RED,
edgeWidth: 1.0,
unionClippingRegions: true, //true 才能多个切割
})
return this.clippingPlanes
}
function createPlaneUpdateFunction(plane) {
return function () {
if (window.localStorage.getItem('slider')) {
plane.distance = window.localStorage.getItem('slider');
return plane;
}
plane.distance = 0;
return plane;
};
}
function CreateSlider(f_id, left, top, max, localStoragename) {
let fEve = document.getElementById(f_id);
window.localStorage.setItem(localStoragename, 0);
let sliderDiv = document.createElement('div');
sliderDiv.style.position = 'absolute';
sliderDiv.style.left = left + 'px';
sliderDiv.style.top = top + 'px';
sliderDiv.style.zIndex = 99;
//滑动长条
let outerDiv = document.createElement('div');
outerDiv.style.position = 'absolute';
outerDiv.style.width = max + 'px';
outerDiv.style.height = '8px';
outerDiv.style.margin = '6px 0 0 0';
outerDiv.style.background = '#fff';
outerDiv.style.border = 'none';
outerDiv.style.borderRadius = '3px';
sliderDiv.appendChild(outerDiv);
//滑动条指针
let innerDiv = document.createElement('div');
innerDiv.style.position = 'absolute';
innerDiv.style.height = '20px';
innerDiv.style.width = '5px';
innerDiv.style.left = max / 2 + 'px';
innerDiv.style.background = 'chocolate';
innerDiv.style.border = '1px solid';
innerDiv.style.borderRadius = '3px';
sliderDiv.appendChild(innerDiv);
fEve.appendChild(sliderDiv);
function getPos(ev) {
let scrollTop = document.documentElement.scrollTop || document.body.scrollTop;
let scrollLeft = document.documentElement.scrollLeft || document.body.scrollLeft;
return {x: ev.clientX + scrollLeft, y: ev.clientY + scrollTop};
}
function getStyle(obj, name) {
if (obj.currentStyle) {
return obj.currentStyle[name];
} else {
return getComputedStyle(obj, false)[name];
}
}
innerDiv.onmousedown = function (ev) {
let oEvent = ev || event;
let pos = getPos(oEvent);
let disx = pos.x - parseInt(getStyle(innerDiv, 'left'));
document.onmousemove = function (ev) {
let oEvent = ev || event;
let pos = getPos(oEvent);
let l = pos.x - disx;
if (l < 0) {
l = 0;
}
if (l > parseInt(getStyle(outerDiv, 'width')) - parseInt(getStyle(innerDiv, 'width'))) {
l = parseInt(getStyle(outerDiv, 'width')) - parseInt(getStyle(innerDiv, 'width'))
}
innerDiv.style.left = l + 'px';
window.localStorage.setItem(localStoragename, l - max / 2);
}
document.onmouseup = function () {
document.onmousemove = null;
document.onmouseup = null;
}
return false;
}
}
</script>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229

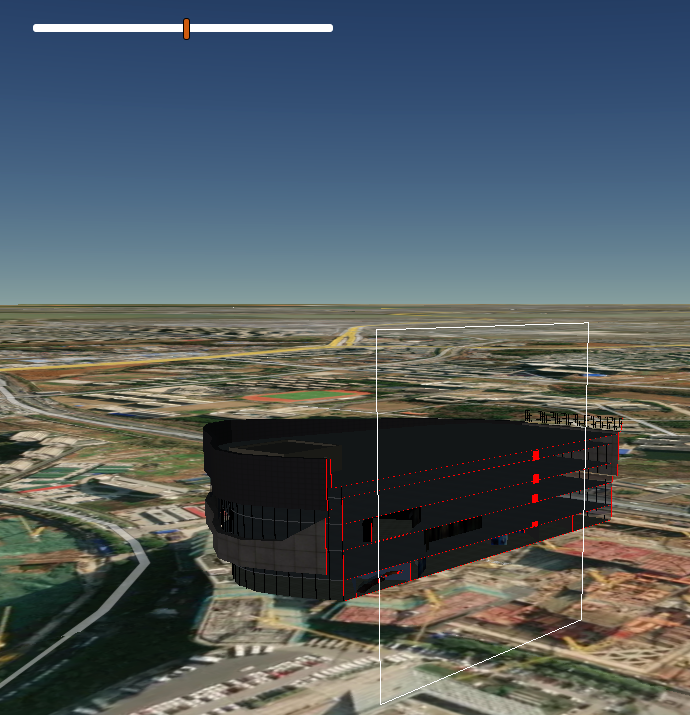

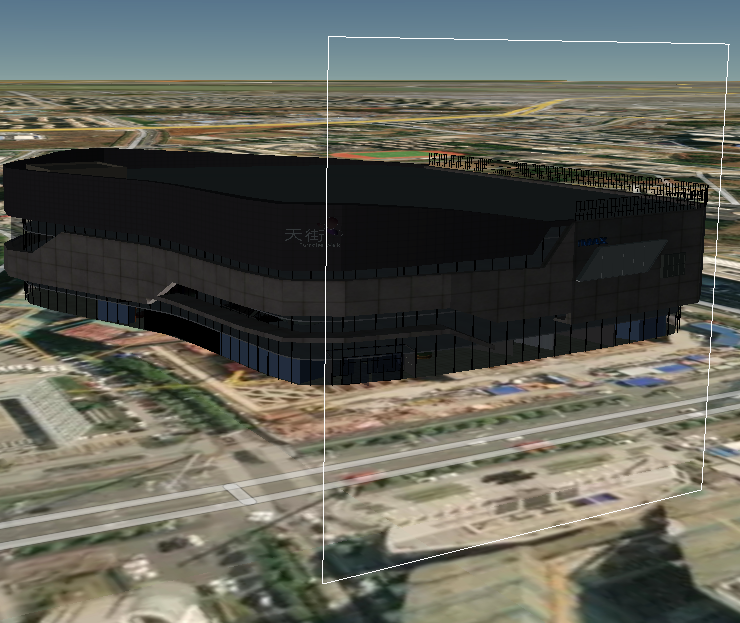

# 实现效果
