# QGIS插件开发-执法业务计算
# 数据准备
- 执法业务图斑数据
- 二调数据
- 符规套合数据
- 征地数据
- 供地数据
- 基本农田数据
# 业务流程
每个月使用最新的遥感影像数据进行解译，获取到具体区域的地理图斑变化情况，将执法变化图斑和其他的图层进行叠加分析。

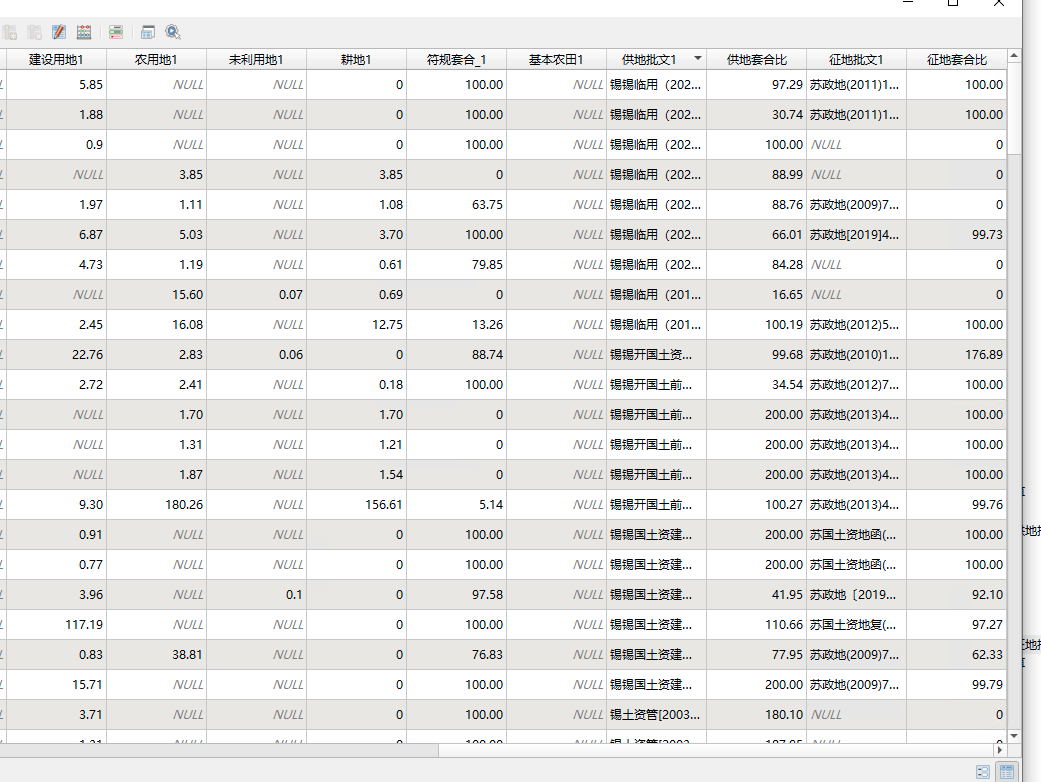

将计算后的结果添加到业务数据的属性表中。
- 使用二调数据和业务图层进行分析计算三大类数据（建设用地、农用地、未利用地）
- 使用二调数据和业务图层进行分析计算耕地数据
- 使用符规套合数据和业务图层进行分析计算符规套合比
- 使用基本农田数据和业务图层进行分析计算基本农田的占比
- 使用供地数据计算供地套合率和供地批文
- 使用征地数据计算征地套合率和征地批文
# 代码开发
环境搭建和配置这里就不再介绍了，具体的可以参考我前面的两篇文章

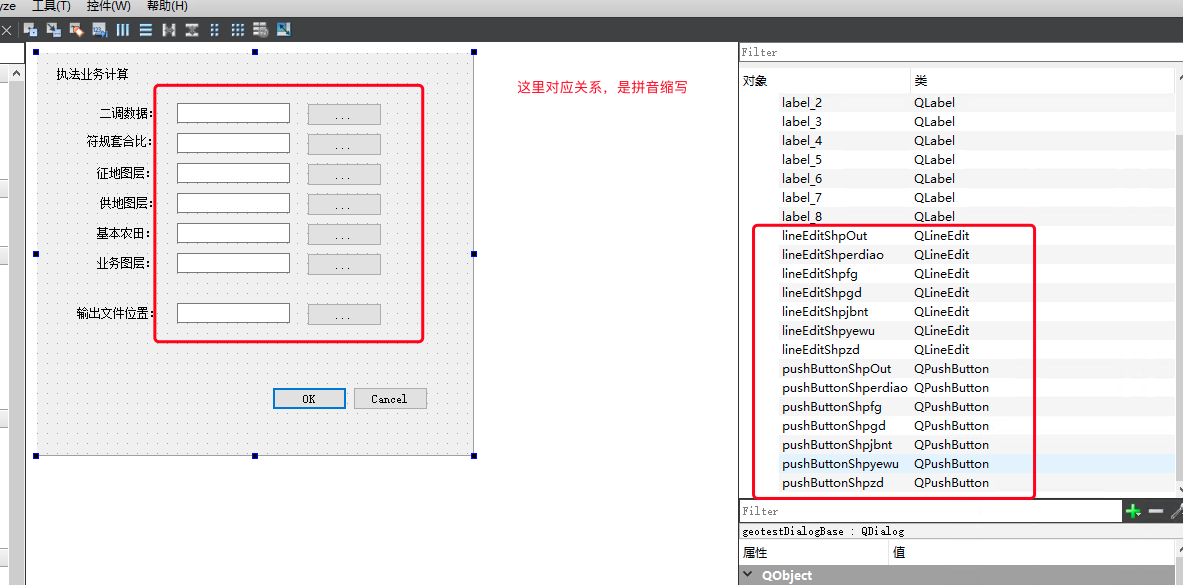

# 界面设计
# 具体代码
# -*- coding: utf-8 -*-
"""
/***************************************************************************
geotest
A QGIS plugin
测试工具
Generated by Plugin Builder: http://g-sherman.github.io/Qgis-Plugin-Builder/
-------------------
begin : 2021-12-13
git sha : $Format:%H$
copyright : (C) 2021 by sunbt
email : 1327398885@qq.com
***************************************************************************/
/***************************************************************************
* *
* This program is free software; you can redistribute it and/or modify *
* it under the terms of the GNU General Public License as published by *
* the Free Software Foundation; either version 2 of the License, or *
* (at your option) any later version. *
* *
***************************************************************************/
"""
import processing
from qgis.PyQt.QtCore import QSettings, QTranslator, QCoreApplication
from qgis.PyQt.QtGui import QIcon
from qgis.PyQt.QtWidgets import QAction, QFileDialog, QProgressBar
from qgis.core import *
# Initialize Qt resources from file resources.py
from .resources import *
# Import the code for the dialog
from .geotest_dialog import geotestDialog
import os.path
class geotest:
"""QGIS Plugin Implementation."""
def __init__(self, iface):
"""Constructor.
:param iface: An interface instance that will be passed to this class
which provides the hook by which you can manipulate the QGIS
application at run time.
:type iface: QgsInterface
"""
# Save reference to the QGIS interface
self.iface = iface
# initialize plugin directory
self.plugin_dir = os.path.dirname(__file__)
# initialize locale
locale = QSettings().value('locale/userLocale')[0:2]
locale_path = os.path.join(
self.plugin_dir,
'i18n',
'geotest_{}.qm'.format(locale))
if os.path.exists(locale_path):
self.translator = QTranslator()
self.translator.load(locale_path)
QCoreApplication.installTranslator(self.translator)
# Declare instance attributes
self.actions = []
self.menu = self.tr(u'&geotest')
# Check if plugin was started the first time in current QGIS session
# Must be set in initGui() to survive plugin reloads
self.first_start = None
# noinspection PyMethodMayBeStatic
def tr(self, message):
"""Get the translation for a string using Qt translation API.
We implement this ourselves since we do not inherit QObject.
:param message: String for translation.
:type message: str, QString
:returns: Translated version of message.
:rtype: QString
"""
# noinspection PyTypeChecker,PyArgumentList,PyCallByClass
return QCoreApplication.translate('geotest', message)
def add_action(
self,
icon_path,
text,
callback,
enabled_flag=True,
add_to_menu=True,
add_to_toolbar=True,
status_tip=None,
whats_this=None,
parent=None):
"""Add a toolbar icon to the toolbar.
:param icon_path: Path to the icon for this action. Can be a resource
path (e.g. ':/plugins/foo/bar.png') or a normal file system path.
:type icon_path: str
:param text: Text that should be shown in menu items for this action.
:type text: str
:param callback: Function to be called when the action is triggered.
:type callback: function
:param enabled_flag: A flag indicating if the action should be enabled
by default. Defaults to True.
:type enabled_flag: bool
:param add_to_menu: Flag indicating whether the action should also
be added to the menu. Defaults to True.
:type add_to_menu: bool
:param add_to_toolbar: Flag indicating whether the action should also
be added to the toolbar. Defaults to True.
:type add_to_toolbar: bool
:param status_tip: Optional text to show in a popup when mouse pointer
hovers over the action.
:type status_tip: str
:param parent: Parent widget for the new action. Defaults None.
:type parent: QWidget
:param whats_this: Optional text to show in the status bar when the
mouse pointer hovers over the action.
:returns: The action that was created. Note that the action is also
added to self.actions list.
:rtype: QAction
"""
icon = QIcon(icon_path)
action = QAction(icon, text, parent)
action.triggered.connect(callback)
action.setEnabled(enabled_flag)
if status_tip is not None:
action.setStatusTip(status_tip)
if whats_this is not None:
action.setWhatsThis(whats_this)
if add_to_toolbar:
# Adds plugin icon to Plugins toolbar
self.iface.addToolBarIcon(action)
if add_to_menu:
self.iface.addPluginToMenu(
self.menu,
action)
self.actions.append(action)
return action
def initGui(self):
"""Create the menu entries and toolbar icons inside the QGIS GUI."""
icon_path = ':/plugins/geotest/icon.png'
self.add_action(
icon_path,
text=self.tr(u'geotest'),
callback=self.run,
parent=self.iface.mainWindow())
# will be set False in run()
self.first_start = True
def unload(self):
"""Removes the plugin menu item and icon from QGIS GUI."""
for action in self.actions:
self.iface.removePluginMenu(
self.tr(u'&geotest'),
action)
self.iface.removeToolBarIcon(action)
# 加载二调文件的路径
def select_shperdiao_file(self):
filename, _filter = QFileDialog.getOpenFileName(
self.dlg, "Select input file", "", "*.shp"
)
self.dlg.lineEditShperdiao.setText(filename)
# 加载符规套合比的路径
def select_shpfg_file(self):
filename, _filter = QFileDialog.getOpenFileName(
self.dlg, "Select input file", "", "*.shp"
)
self.dlg.lineEditShpfg.setText(filename)
# 加载征地图层的路径
def select_shpzd_file(self):
filename, _filter = QFileDialog.getOpenFileName(
self.dlg, "Select input file", "", "*.shp"
)
self.dlg.lineEditShpzd.setText(filename)
# 加载供地图层的路径
def select_shpgd_file(self):
filename, _filter = QFileDialog.getOpenFileName(
self.dlg, "Select input file", "", "*.shp"
)
self.dlg.lineEditShpgd.setText(filename)
# 加载基本农田图层的路径
def select_shpjbnt_file(self):
filename, _filter = QFileDialog.getOpenFileName(
self.dlg, "Select input file", "", "*.shp"
)
self.dlg.lineEditShpjbnt.setText(filename)
# 加载业务文件的路径
def select_shpyewu_file(self):
filename, _filter = QFileDialog.getOpenFileName(
self.dlg, "Select input file", "", "*.shp"
)
self.dlg.lineEditShpyewu.setText(filename)
# 导出shp文件的路径
def select_output_file(self):
filename, _filter = QFileDialog.getSaveFileName(
self.dlg, "Select output file", "", "*.shp"
)
self.dlg.lineEditShpOut.setText(filename)
# 建设用地计算
def law_jsyd(self, input_path, yewu_path):
results = {}
outputs = {}
# 按表达式提取
alg_params = {
'EXPRESSION': '\"DLBM\"=201 or \"DLBM\"=202 or \"DLBM\"=203 or \"DLBM\"=204 or \"DLBM\"=205 or \"DLBM\"=101 or \"DLBM\"=102 or \"DLBM\"=105 or \"DLBM\"=106 or \"DLBM\"=113 or \"DLBM\"=118',
'INPUT': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:extractbyexpression', alg_params)
# 相交
alg_params = {
'INPUT': outputs['']['OUTPUT'],
'INPUT_FIELDS': [''],
'OVERLAY': yewu_path,
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:intersection', alg_params)
# 融合
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:dissolve', alg_params)
# 字段计算器
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '建设用地1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': ' round(($area * 0.0015),2)',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['建设用地1'],
'FIELD_2': 'JCBH',
'INPUT': yewu_path,
'INPUT_2': outputs['']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:joinattributestable', alg_params)
results['res_jsyd'] = outputs['']['OUTPUT']
return results
# 农用地计算
def law_nyd(self, input_path, yewu_path):
results = {}
outputs = {}
# 按表达式提取
alg_params = {
'EXPRESSION': '\"DLBM\"=011 or \"DLBM\"=123 or \"DLBM\"=041 or \"DLBM\"=012 or \"DLBM\"=031 or \"DLBM\"=042 or \"DLBM\"=022 or \"DLBM\"=117 or \"DLBM\"=032 or \"DLBM\"=021 or \"DLBM\"=013 or \n\"DLBM\"=114 or \"DLBM\"=104 or \"DLBM\"=033 or \"DLBM\"=023 or \"DLBM\"=122',
'INPUT': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:extractbyexpression', alg_params)
# 相交
alg_params = {
'INPUT': outputs['']['OUTPUT'],
'INPUT_FIELDS': [''],
'OVERLAY': yewu_path,
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:intersection', alg_params)
# 融合
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:dissolve', alg_params)
# 字段计算器
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '农用地1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': ' round(($area * 0.0015),2)',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['农用地1'],
'FIELD_2': 'JCBH',
'INPUT': yewu_path,
'INPUT_2': outputs['']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:joinattributestable', alg_params)
results['res_nyd'] = outputs['']['OUTPUT']
return results
# 未利用地计算
def law_wlyd(self, input_path, yewu_path):
results = {}
outputs = {}
# 按表达式提取
alg_params = {
'EXPRESSION': '\"DLBM\"=111 or \"DLBM\"=112 or \"DLBM\"=115 or \"DLBM\"=116 or \"DLBM\"=119 or \"DLBM\"=043 or \"DLBM\"=124 or \"DLBM\"=125 or \"DLBM\"=126 or \"DLBM\"=127',
'INPUT': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:extractbyexpression', alg_params)
# 相交
alg_params = {
'INPUT': outputs['']['OUTPUT'],
'INPUT_FIELDS': [''],
'OVERLAY': yewu_path,
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:intersection', alg_params)
# 融合
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:dissolve', alg_params)
# 字段计算器
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '未利用地1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': 'round(($area * 0.0015),2)',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['未利用地1'],
'FIELD_2': 'JCBH',
'INPUT': yewu_path,
'INPUT_2': outputs['']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:joinattributestable', alg_params)
results['res_wlyd'] = outputs['']['OUTPUT']
return results
# 耕地计算
def law_gengdi(self, input_path, yewu_path):
results = {}
outputs = {}
# 按表达式提取
alg_params = {
'EXPRESSION': '\"DLBM\"=011 or \"DLBM\"=012 or \"DLBM\"=013 ',
'INPUT': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:extractbyexpression', alg_params)
# 相交
alg_params = {
'INPUT': outputs['']['OUTPUT'],
'INPUT_FIELDS': [''],
'OVERLAY': yewu_path,
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:intersection', alg_params)
# 融合
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:dissolve', alg_params)
# 字段计算器(耕地1)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '耕地1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area * 0.0015)',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['耕地1'],
'FIELD_2': 'JCBH',
'INPUT': yewu_path,
'INPUT_2': outputs['']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:joinattributestable', alg_params)
# 字段计算器(耕地1null设置为0)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '耕地1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': 'CASE WHEN \"耕地1\" is NULL THEN 0 else \"耕地1\" END\r\n',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['Null0'] = processing.run('native:fieldcalculator', alg_params)
results['res_gengdi'] = outputs['Null0']['OUTPUT']
return results
# 符规套合比计算
def law_fg(self, input_path, yewu_path):
results = {}
outputs = {}
# 按表达式提取
alg_params = {
'EXPRESSION': '\"GZQLXDM\"=010',
'INPUT': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['1'] = processing.run('native:extractbyexpression', alg_params)
# 添加字段到属性表
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '符规套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 1,
'INPUT': yewu_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['2'] = processing.run('native:addfieldtoattributestable', alg_params)
# 相交
alg_params = {
'INPUT': outputs['1']['OUTPUT'],
'INPUT_FIELDS': [''],
'OVERLAY': outputs['2']['OUTPUT'],
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['3'] = processing.run('native:intersection', alg_params)
# 融合
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['3']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['4'] = processing.run('native:dissolve', alg_params)
# 字段计算器(图斑面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '图斑面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area*0.0015)',
'INPUT': outputs['2']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['5'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(符规套合相交结果)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '符规套合相交结果',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area * 0.0015)',
'INPUT': outputs['4']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['6'] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['符规套合相交结果'],
'FIELD_2': 'JCBH',
'INPUT': outputs['5']['OUTPUT'],
'INPUT_2': outputs['6']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['7'] = processing.run('native:joinattributestable', alg_params)
# 字段计算器(符规套合比1)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '符规套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': ' (\"符规套合相交结果\" / \"图斑面积\") * 100',
'INPUT': outputs['7']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['8'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(符规套合比1null设置0)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '符规套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': 'CASE WHEN \"符规套合比1\" is NULL THEN 0 else \"符规套合比1\" END\r\n',
'INPUT': outputs['8']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['Null0'] = processing.run('native:fieldcalculator', alg_params)
# 删除字段(图斑面积)
alg_params = {
'COLUMN': ['图斑面积'],
'INPUT': outputs['Null0']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['9'] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(符规套合相交结果)
alg_params = {
'COLUMN': ['符规套合相交结果'],
'INPUT': outputs['9']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
results['res_fg'] = outputs['']['OUTPUT']
return results
# 基本农田计算
def law_jbnt(self, input_path, yewu_path):
results = {}
outputs = {}
# 添加字段到属性表
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '基本农田',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 1,
'INPUT': yewu_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:addfieldtoattributestable', alg_params)
# 相交
alg_params = {
'INPUT': input_path,
'INPUT_FIELDS': [''],
'OVERLAY': outputs['']['OUTPUT'],
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:intersection', alg_params)
# 融合
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:dissolve', alg_params)
# 字段计算器
alg_params = {
'FIELD_LENGTH': 5,
'FIELD_NAME': '基本农田1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': ' round(($area * 0.0015),2)',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['基本农田1'],
'FIELD_2': 'JCBH',
'INPUT': yewu_path,
'INPUT_2': outputs['']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:joinattributestable', alg_params)
results['res_jbnt'] = outputs['']['OUTPUT']
return results
# 执法供地套合率和供地批文计算
def law_gdth(self, input_path, yewu_path):
results = {}
outputs = {}
# 相交
# 征地图层和业务图层相交结果
alg_params = {
'INPUT': input_path,
'INPUT_FIELDS': [''],
'OVERLAY': yewu_path,
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['xj'] = processing.run('native:intersection', alg_params)
# 字段计算器(供地批文1)
alg_params = {
'FIELD_LENGTH': 500,
'FIELD_NAME': '供地批文1',
'FIELD_PRECISION': 500,
'FIELD_TYPE': 2,
'FORMULA': 'concatenate(\"PCWH\",group_by:=\"JCBH\",concatenator:=\',\')',
'INPUT': outputs['xj']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_gdpw1'] = processing.run('native:fieldcalculator', alg_params)
# 融合(按JCBH分组合并数据)
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['zdjsq_gdpw1']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['rh_aJCBHfzhbsl'] = processing.run('native:dissolve', alg_params)
# 字段计算器(分割相交面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '分割相交面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area * 0.0015)',
'INPUT': outputs['xj']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_fgxjmj'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(计算图斑面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '图斑面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area*0.0015)',
'INPUT': yewu_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_jstbmj'] = processing.run('native:fieldcalculator', alg_params)
# 差异
# 计算业务图层与供地地图层去除相交部分的面积
alg_params = {
'INPUT': yewu_path,
'OVERLAY': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['cy'] = processing.run('native:difference', alg_params)
# 字段计算器(融合分割相交面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '融合分割相交面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '\r\nsum(\"分割相交面积\",group_by:=\"JCBH\")',
'INPUT': outputs['zdjsq_fgxjmj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_rhfgxjmj'] = processing.run('native:fieldcalculator', alg_params)
# 融合(按JCBH合并数据)
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['cy']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['rh_aJCBHhbsj'] = processing.run('native:dissolve', alg_params)
# 融合(按JCBH分组面积)
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['zdjsq_rhfgxjmj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['rh_aJCBHfzmj'] = processing.run('native:dissolve', alg_params)
# 按字段值连接属性(融合分割相交面积)
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['融合分割相交面积'],
'FIELD_2': 'JCBH',
'INPUT': outputs['zdjsq_jstbmj']['OUTPUT'],
'INPUT_2': outputs['rh_aJCBHfzmj']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['azdzljsx_rhfgxjmj'] = processing.run('native:joinattributestable', alg_params)
# 按字段值连接属性(供地批文1)
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['供地批文1'],
'FIELD_2': 'JCBH',
'INPUT': outputs['azdzljsx_rhfgxjmj']['OUTPUT'],
'INPUT_2': outputs['rh_aJCBHfzhbsl']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['azdzljsx_gdpw1'] = processing.run('native:joinattributestable', alg_params)
# 字段计算器(供地差异面积)
# 计算业务图层去除与供地相交部分后是否存在，存在就计算面积
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '供地差异面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area*0.0015)',
'INPUT': outputs['rh_aJCBHhbsj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_gdcymj'] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性(供地差异面积)
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['供地差异面积'],
'FIELD_2': 'JCBH',
'INPUT': outputs['azdzljsx_gdpw1']['OUTPUT'],
'INPUT_2': outputs['zdjsq_gdcymj']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['azdzljsx_gdcymj'] = processing.run('native:joinattributestable', alg_params)
# 字段计算器(存在差异时，设置为null)
alg_params = {
'FIELD_LENGTH': 500,
'FIELD_NAME': '供地批文1',
'FIELD_PRECISION': 0,
'FIELD_TYPE': 2,
'FORMULA': 'CASE WHEN not(\"供地批文1\" is NULL) and not(\"供地差异面积\" is NULL) THEN concat( \"供地批文1\",\',null\') else \"供地批文1\" END\r\n',
'INPUT': outputs['azdzljsx_gdcymj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['Null'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(供地套合比1)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '供地套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': ' (\"融合分割相交面积\" / \"图斑面积\") * 100',
'INPUT': outputs['Null']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_gdthb1'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(null设置为0)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '供地套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': 'CASE WHEN \"供地套合比1\" is NULL THEN 0 else \"供地套合比1\" END\r\n',
'INPUT': outputs['zdjsq_gdthb1']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['Null0'] = processing.run('native:fieldcalculator', alg_params)
# 删除字段(图斑面积)
alg_params = {
'COLUMN': ['图斑面积'],
'INPUT': outputs['Null0']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(分割相交面积)
alg_params = {
'COLUMN': ['分割相交面积'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(融合分割相交面积)
alg_params = {
'COLUMN': ['融合分割相交面积'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(供地差异面积)
alg_params = {
'COLUMN': ['供地差异面积'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
results['res_gdth'] = outputs['']['OUTPUT']
return results
# 执法征地套合率和征地批文计算
def law_zdth(self, input_path, yewu_path, outPath):
results = {}
outputs = {}
# 相交
# 征地图层和业务图层相交结果
alg_params = {
'INPUT': input_path,
'INPUT_FIELDS': [''],
'OVERLAY': yewu_path,
'OVERLAY_FIELDS': [''],
'OVERLAY_FIELDS_PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['xj'] = processing.run('native:intersection', alg_params)
# 字段计算器(征地批文1)
alg_params = {
'FIELD_LENGTH': 500,
'FIELD_NAME': '征地批文1',
'FIELD_PRECISION': 500,
'FIELD_TYPE': 2,
'FORMULA': 'concatenate(\"SJ_PF_WH\",group_by:=\"JCBH\",concatenator:=\',\')',
'INPUT': outputs['xj']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_zdpw1'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(分割相交面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '分割相交面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area * 0.0015)',
'INPUT': outputs['xj']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_fgxjmj'] = processing.run('native:fieldcalculator', alg_params)
# 融合(按JCBH分组合并数据)
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['zdjsq_zdpw1']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['rh_aJCBHfzhbsj'] = processing.run('native:dissolve', alg_params)
# 字段计算器(计算图斑面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '图斑面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area*0.0015)',
'INPUT': yewu_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_jstbmj'] = processing.run('native:fieldcalculator', alg_params)
# 差异
# 计算业务图层与征地图层去除相交部分的面积
alg_params = {
'INPUT': yewu_path,
'OVERLAY': input_path,
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['cy'] = processing.run('native:difference', alg_params)
# 字段计算器(融合分割相交面积)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '融合分割相交面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '\r\nsum(\"分割相交面积\",group_by:=\"JCBH\")',
'INPUT': outputs['zdjsq_fgxjmj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_rhfgxjmj'] = processing.run('native:fieldcalculator', alg_params)
# 融合(按JCBH分组面积)
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['zdjsq_rhfgxjmj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['rh_aJCBHfzmj'] = processing.run('native:dissolve', alg_params)
# 融合(按JCBH合并数据)
alg_params = {
'FIELD': ['JCBH'],
'INPUT': outputs['cy']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['rh_aJCBHhbsj'] = processing.run('native:dissolve', alg_params)
# 按字段值连接属性(融合分割相交面积)
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['融合分割相交面积'],
'FIELD_2': 'JCBH',
'INPUT': outputs['zdjsq_jstbmj']['OUTPUT'],
'INPUT_2': outputs['rh_aJCBHfzmj']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['azdzljsx_rhfgxjmj'] = processing.run('native:joinattributestable', alg_params)
# 按字段值连接属性(征地批文1)
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['征地批文1'],
'FIELD_2': 'JCBH',
'INPUT': outputs['azdzljsx_rhfgxjmj']['OUTPUT'],
'INPUT_2': outputs['rh_aJCBHfzhbsj']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['azdzljsx_zdpw1'] = processing.run('native:joinattributestable', alg_params)
# 字段计算器(征地差异面积)
# 计算业务图层去除与征地相交部分后是否存在，存在就计算面积
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '征地差异面积',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': '($area*0.0015)',
'INPUT': outputs['rh_aJCBHhbsj']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['zdjsq_zdcymj'] = processing.run('native:fieldcalculator', alg_params)
# 按字段值连接属性(征地差异面积)
alg_params = {
'DISCARD_NONMATCHING': False,
'FIELD': 'JCBH',
'FIELDS_TO_COPY': ['征地差异面积'],
'FIELD_2': 'JCBH',
'INPUT': outputs['azdzljsx_zdpw1']['OUTPUT'],
'INPUT_2': outputs['zdjsq_zdcymj']['OUTPUT'],
'METHOD': 1,
'PREFIX': '',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:joinattributestable', alg_params)
# 字段计算器(存在差异时，设置为null)
alg_params = {
'FIELD_LENGTH': 500,
'FIELD_NAME': '征地批文1',
'FIELD_PRECISION': 0,
'FIELD_TYPE': 2,
'FORMULA': 'CASE WHEN not(\"征地批文1\" is NULL) and not(\"征地差异面积\" is NULL) THEN concat( \"征地批文1\",\',null\') else \"征地批文1\" END\r\n',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['Null'] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(征地套合比)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '征地套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': ' (\"融合分割相交面积\" / \"图斑面积\") * 100',
'INPUT': outputs['Null']['OUTPUT'],
'OUTPUT': 'TEMPORARY_OUTPUT',
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('native:fieldcalculator', alg_params)
# 字段计算器(null设置为0)
alg_params = {
'FIELD_LENGTH': 10,
'FIELD_NAME': '征地套合比1',
'FIELD_PRECISION': 2,
'FIELD_TYPE': 0,
'FORMULA': 'CASE WHEN \"征地套合比1\" is NULL THEN 0 else \"征地套合比1\" END\r\n',
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs['Null0'] = processing.run('native:fieldcalculator', alg_params)
# 删除字段(图斑面积)
alg_params = {
'COLUMN': ['图斑面积'],
'INPUT': outputs['Null0']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(融合分割相交面积)
alg_params = {
'COLUMN': ['融合分割相交面积'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(分割相交面积)
alg_params = {
'COLUMN': ['分割相交面积'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': QgsProcessing.TEMPORARY_OUTPUT
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
# 删除字段(征地差异面积)
alg_params = {
'COLUMN': ['征地差异面积'],
'INPUT': outputs['']['OUTPUT'],
'OUTPUT': outPath
}
outputs[''] = processing.run('qgis:deletecolumn', alg_params)
results['res_zdth'] = outputs['']['OUTPUT']
return results

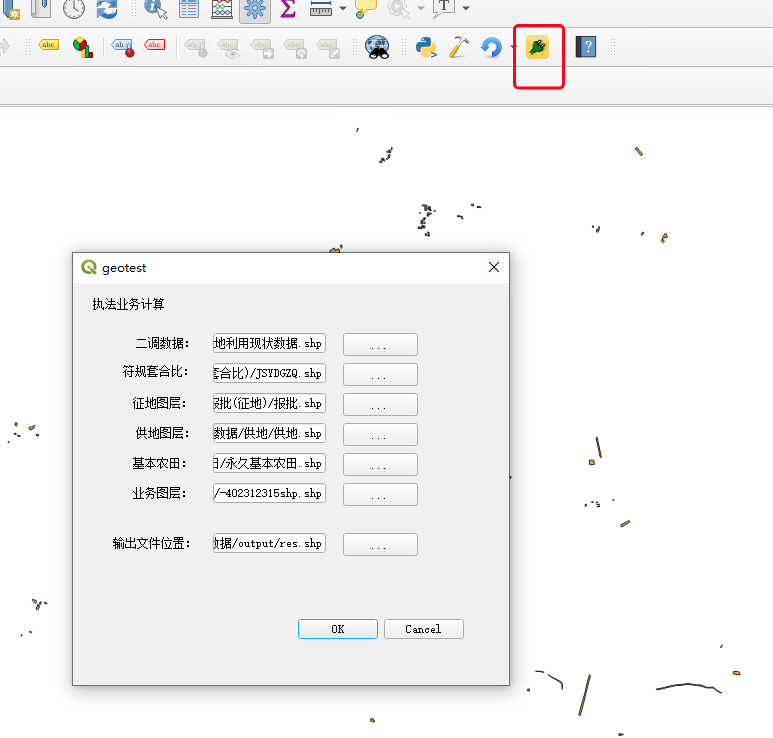

def run(self):
"""Run method that performs all the real work"""
# Create the dialog with elements (after translation) and keep reference
# Only create GUI ONCE in callback, so that it will only load when the plugin is started
if self.first_start == True:
self.first_start = False
self.dlg = geotestDialog()
# 点击按钮，确定路径
self.dlg.pushButtonShperdiao.clicked.connect(self.select_shperdiao_file)
self.dlg.pushButtonShpfg.clicked.connect(self.select_shpfg_file)
self.dlg.pushButtonShpzd.clicked.connect(self.select_shpzd_file)
self.dlg.pushButtonShpgd.clicked.connect(self.select_shpgd_file)
self.dlg.pushButtonShpjbnt.clicked.connect(self.select_shpjbnt_file)
self.dlg.pushButtonShpyewu.clicked.connect(self.select_shpyewu_file)
self.dlg.pushButtonShpOut.clicked.connect(self.select_output_file)
# show the dialog
self.dlg.show()
# Run the dialog event loop
result = self.dlg.exec_()
# See if OK was pressed
if result:
# Do something useful here - delete the line containing pass and
# substitute with your code.
# 获取二调文件路径
shperdiaoPath = self.dlg.lineEditShperdiao.text()
# 符规套合比文件路径
shpfg = self.dlg.lineEditShpfg.text()
# 征地图层文件路径
shpzd = self.dlg.lineEditShpzd.text()
# 供地图层文件路径
shpgd = self.dlg.lineEditShpgd.text()
# 基本农田文件路径
shpjbnt = self.dlg.lineEditShpjbnt.text()
# 业务图斑文件路径
shpyewu = self.dlg.lineEditShpyewu.text()
# 获取导出结果文件路径
outPath = self.dlg.lineEditShpOut.text()
# 输出图层名称
layerName = outPath.split("/")[len(outPath.split("/")) - 1].replace(".shp", "")
# 建设用地计算
jsyd = self.law_jsyd(shperdiaoPath, shpyewu)
# 农用地计算
nyd = self.law_nyd(shperdiaoPath, jsyd['res_jsyd'])
# 未利用地计算
wlyd = self.law_wlyd(shperdiaoPath, nyd['res_nyd'])
# 耕地计算
gengdi = self.law_gengdi(shperdiaoPath, wlyd['res_wlyd'])
# 符规套合比计算
fg = self.law_fg(shpfg, gengdi['res_gengdi'])
# 基本农田计算
jbnt = self.law_jbnt(shpjbnt, fg['res_fg'])
# 执法供地套合率和供地批文计算
gdth = self.law_gdth(shpgd, jbnt['res_jbnt'])
# 执法征地套合率和征地批文计算
self.law_zdth(shpzd, gdth['res_gdth'], outPath)

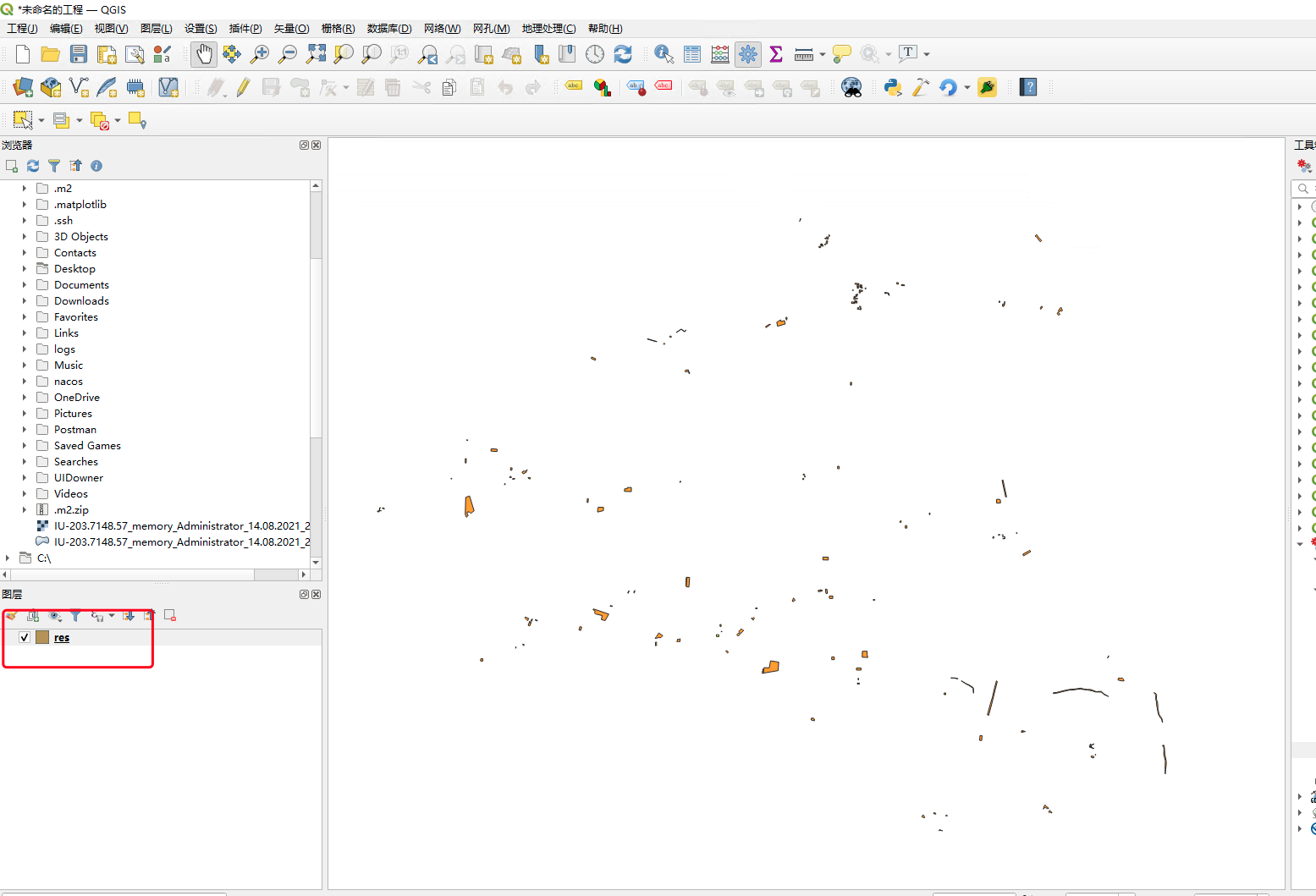

# 将结果添加到窗口中
vlayer = QgsVectorLayer(outPath, layerName, "ogr")
if vlayer.isValid():
QgsProject.instance().addMapLayer(vlayer)
else:
print("图层加载失败！")
pass
# 在QGIS界面上打印结果
self.iface.messageBar().pushMessage("成功", "加载图层：" + layerName, level=Qgis.Success)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
# 结果显示
数据计算结果
