# cesium-加载天地图影像

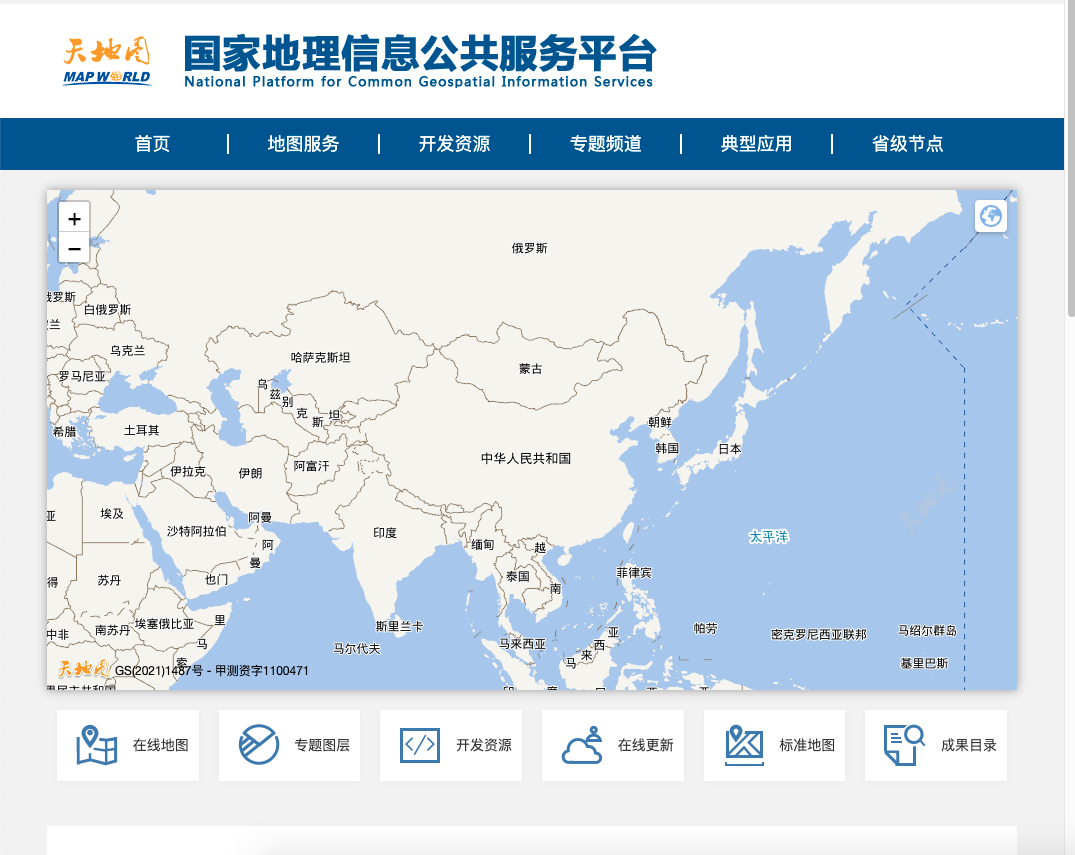

# 天地图
“天地图”网站装载了覆盖全球的地理信息数据，这些数据以矢量、影像、三维3种模式全方位、多角度展现，可漫游、能缩放。其中中国的数据覆盖了从宏观的中国全境到微观的乡镇、村庄。普通公众登录“天地图”网站，即可看到覆盖全球范围的1：100万矢量数据和500米分辨率卫星遥感影像，覆盖全国范围的1：25万公众版地图数据、导航电子地图数据、15米和2.5米分辨率卫星遥感影像，覆盖全国300多个地级以上城市的0.6米分辨率卫星遥感影像等地理信息数据，是目前中国区域内数据资源最全的地理信息服务网站。

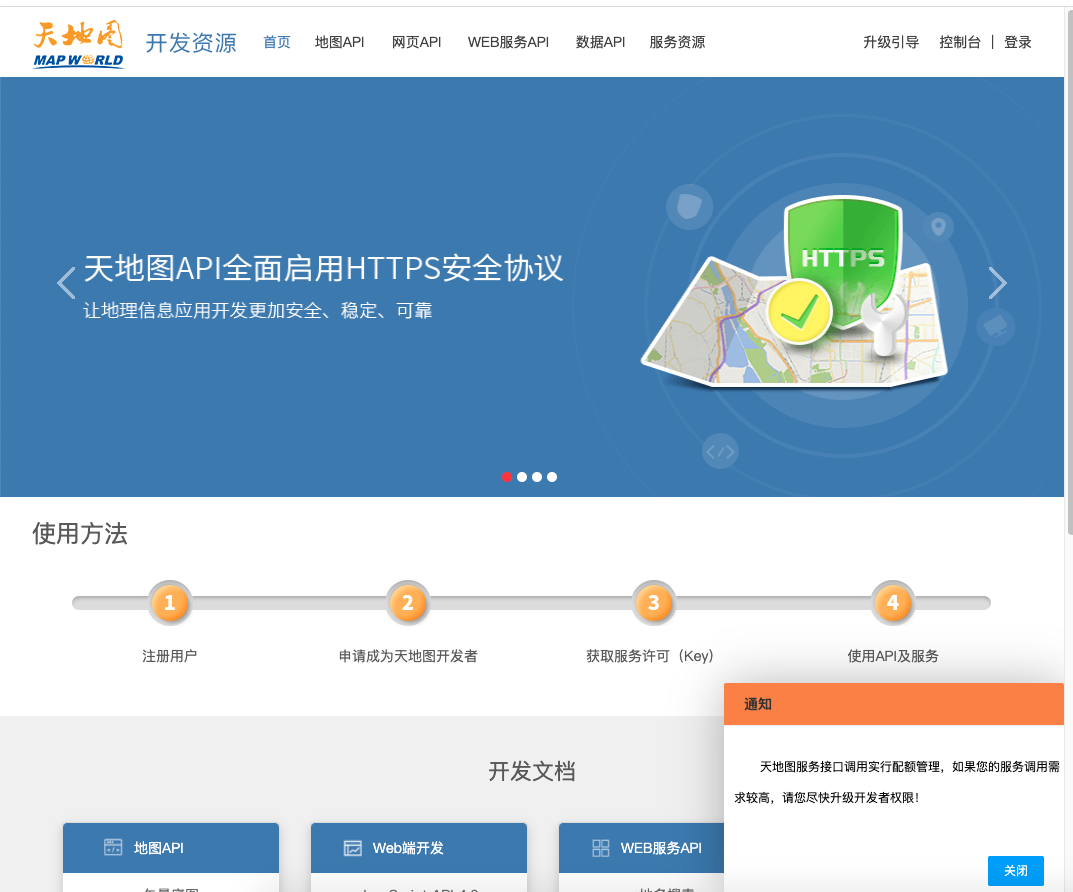

# 申请天地图token

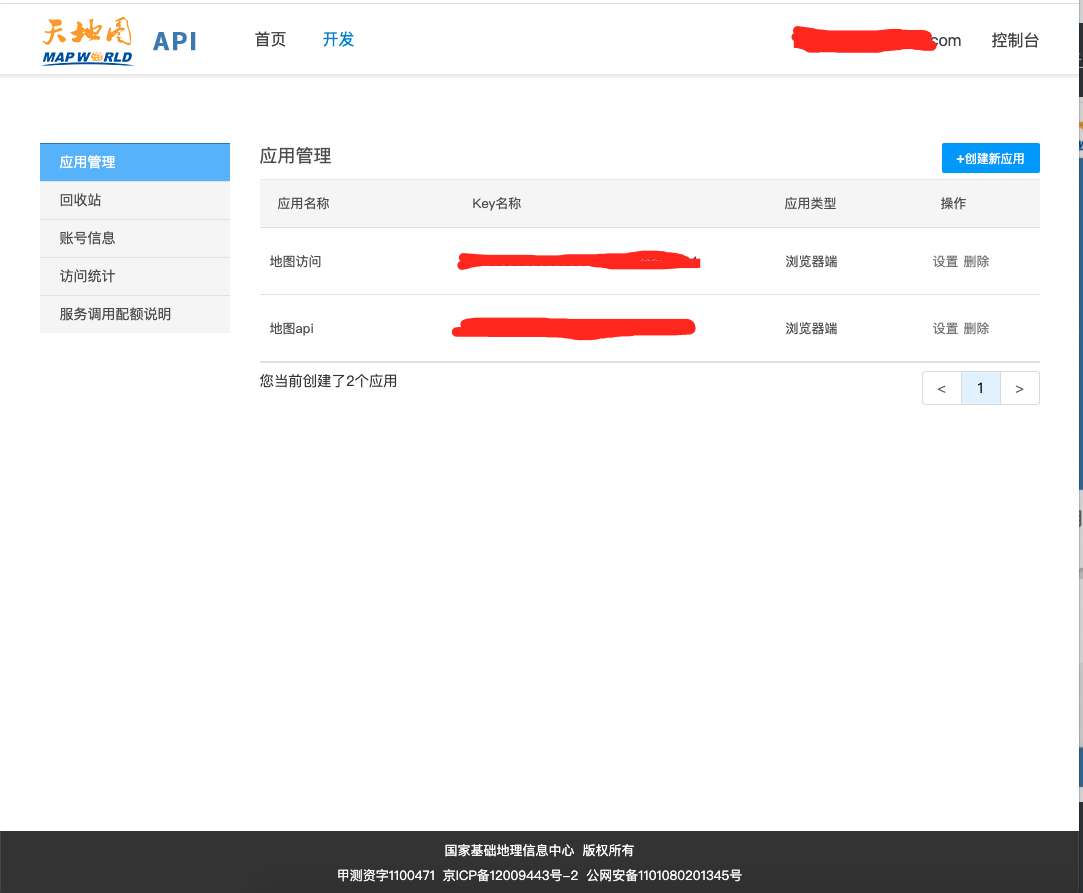

创建地图key
# 代码
<!DOCTYPE html>
<html lang="en">
<head>
<!-- Use correct character set. -->
<meta charset="utf-8"/>
<!-- Tell IE to use the latest, best version. -->
<meta http-equiv="X-UA-Compatible" content="IE=edge"/>
<!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
<meta name="viewport"
content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no"/>
<title>cesium加载天地图影像</title>
<script src="http://192.168.1.243:8088/lib/Cesium-1.78/Build/Cesium/Cesium.js"></script>
<style>
@import url(http://192.168.1.243:8088/lib/Cesium-1.78/Build/Cesium/Widgets/widgets.css);
html,
body,
#cesiumContainer {
width: 100%;
height: 100%;
margin: 0;
padding: 0;
overflow: hidden;
}
</style>
</head>
<body>
<div id="cesiumContainer"></div>
<script>
//天地图token
let TDT_tk = "token";
//Cesium token
let cesium_tk = "cesium token";
//天地图影像
let TDT_IMG_C = "http://{s}.tianditu.gov.cn/img_c/wmts?service=wmts&request=GetTile&version=1.0.0" +
"&LAYER=img&tileMatrixSet=c&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}" +
"&style=default&format=tiles&tk=" + TDT_tk;
//标注
let TDT_CIA_C = "http://{s}.tianditu.gov.cn/cia_c/wmts?service=wmts&request=GetTile&version=1.0.0" +
"&LAYER=cia&tileMatrixSet=c&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}" +
"&style=default&format=tiles&tk=" + TDT_tk;
//初始页面加载
Cesium.Ion.defaultAccessToken = cesium_tk;
let viewer = new Cesium.Viewer('cesiumContainer', {
timeline: true,
homeButton: true,
fullscreenButton: true,
infoBox: true,
animation: true,
shouldAnimate: true,
imageryProvider: new Cesium.WebMapTileServiceImageryProvider({
url: TDT_IMG_C,
layer: "tdtImg_c",
style: "default",
format: "tiles",
tileMatrixSetID: "c",
subdomains: ["t0", "t1", "t2", "t3", "t4", "t5", "t6", "t7"],
tilingScheme: new Cesium.GeographicTilingScheme(),
tileMatrixLabels: ["1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12", "13", "14", "15", "16", "17", "18", "19"],
maximumLevel: 50,
show: false
})
});
//调用影响中文注记服务
viewer.imageryLayers.addImageryProvider(new Cesium.WebMapTileServiceImageryProvider({
url: TDT_CIA_C,
layer: "tdtImg_c",
style: "default",
format: "tiles",
tileMatrixSetID: "c",
subdomains: ["t0", "t1", "t2", "t3", "t4", "t5", "t6", "t7"],
tilingScheme: new Cesium.GeographicTilingScheme(),
tileMatrixLabels: ["1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12", "13", "14", "15", "16", "17", "18", "19"],
maximumLevel: 50,
show: false
}))
</script>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

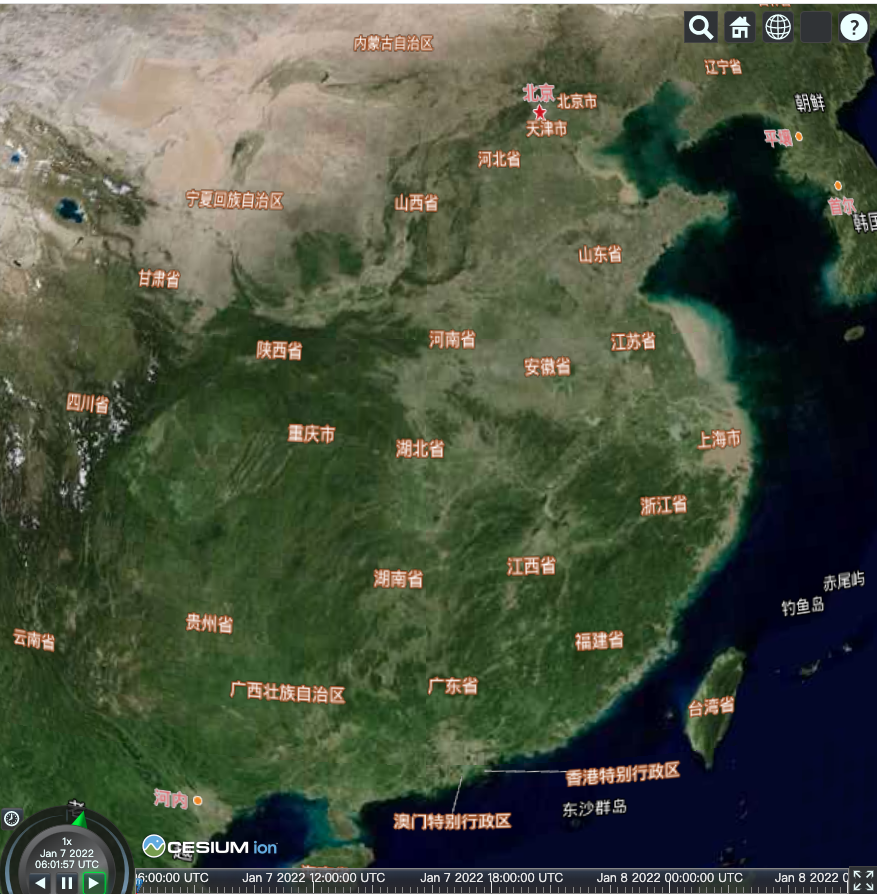

具体效果
